The ChromaDoc-It System connects to your computer for acquisition and documentation of thin layer chromatography (TLC) images. The high resolution digital camera is controlled by UVP's exclusive image capture software. Image Capture requires computer, which is not included.

Features

• Digi Cam 125 digital color camera with 12.1 megapixel resolution,
• Low profile Chromato-Vue UV viewing cabinet includes overhead UV,
• Capture software enables live preview of images and image enhancement.

Specifications

• Camera:
• DigiCam 120 High Resolution Image Capture
• 12.1 megapixel resolution
• Digital color imaging
• Interface: USB connector
• Power supply: DC power
• Emission Filter Options:
• Standard:  An 50mm square ethidium bromide (EtBr, Red 570-640nm) filter is included with the system.
• Add a Filter:  Also available is a SYBR Green/EGFP filter.  Option to add SYBR Green/EGFP filter for added capabilty.
• Substitute:  Call us to substitute, or add additional filters as required for other types of stains and a wide array of applications.
• Contact us at SciencEquipment.com for filter options to meet specific requirements.
• Image Capture Software:
• Live preview of images and enhancements
• Software controls the camera functions, image capture and image enhancement
• Allows selection of user-defined, default settngs and templates
• Image enhancement enables annotation, use of filters
• Report generation
• Compatible with Microsoft Windows 7, Vista and XP SP 2 or later (32-bit or 64-bit)
• Chromato-Vue UV Viewing Cabinet
• Low profile, lightweight plastic cabinet
• 15-watt 254nm and 365nm overhead UV tubes, positioned on two sides of the cabinet for uniform UV illumination
• Interior white light
• Curtain for access blocks ambient light
• Cabinet Dimensions: 19.75W x 16.5D x 15.38H in. (502 x 419 x 391mm)
• Select input power: 120VAC, 240VAC & 100VAC

Optional Accessories

• Monochrome Thermal Printer quickly document gels, films and membranes with archive quality high resolution prints. (Click here to order)

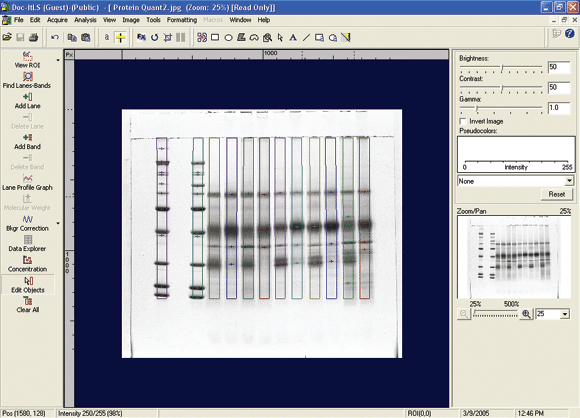

• Doc-It LS Acquisition and Analysis Software (Click here to order):

• Simple, workflow-based software interface to generate quantitative analysis results.
• Pre-set and one-touch image preview and capture buttons to simplify image acquisition.
• Control the camera and lighting settings.
• Easily perform image enhancements and 1D analysis and colony counting functions.
• Create, document and print detailed and customizable reports of analysis data.

• Gel-Tools:

• Gel-ToolKit
• Gel-Cutter - For easy cutting and removal of gel material.
• Gel-Sentry -  Minimizing UV exposure during cutting to protect gels from damage.
• Step Tablet - A calibrated 21-step gray density gradation standard reference for images.
• Gel-Scooper - For easy transfer of gels from electrophoresis equipment to viewing equipment.
• Gel-Ruler - Centimeter ruler with markings that fluoresce providing reference marks for DNA analysis.
• Gel-Trays - For moving gels to the transilluminator and protecting the transilluminator's filter surface from scratches.

Literature

See Operating Manual

---
