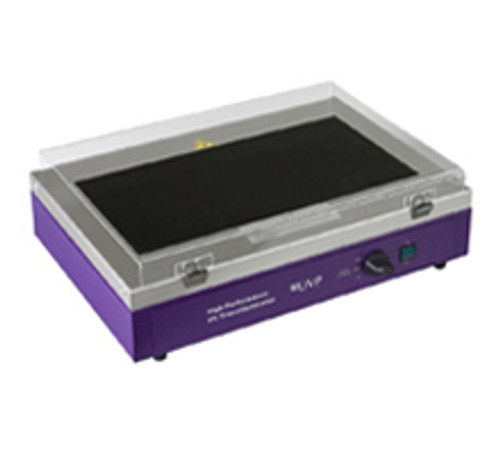

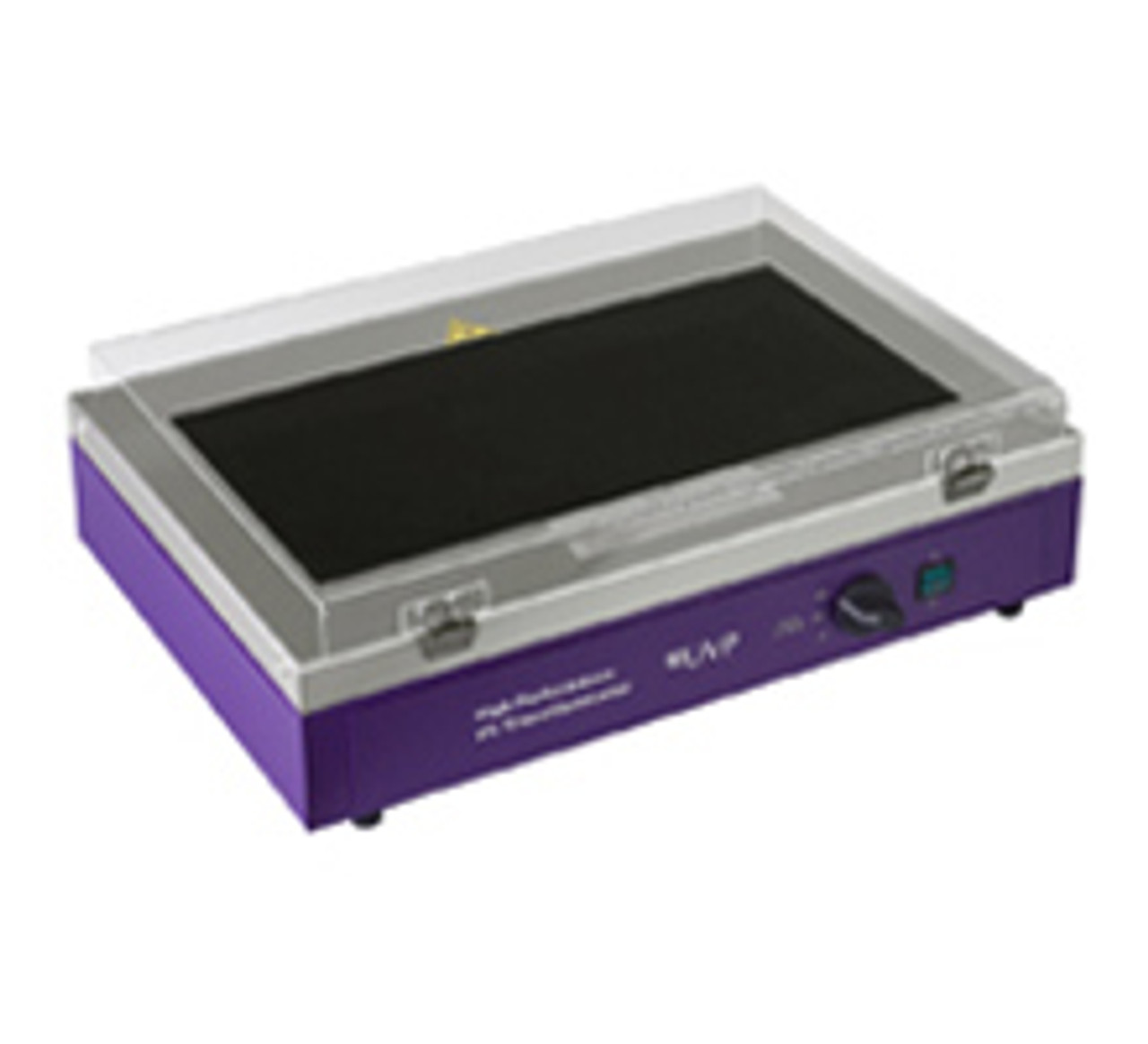

Analytikjena's exclusive High Performance UVA Transilluminator Model TFL-40V provides a total of 100-watts of high intensity UVA (365nm) ultraviolet illumination. The 20 x 40cm backlit UV illumination is further enhanced with Analytikjena's UV long-life filter and uniformity screen.
Features
The UV blocking cover is adjustable for access to the filter surface,
The stainless steel frame enables easy cleaning,
The 3-step variable intensity settings allow the researcher to select high, medium or low intensity.
Specifications
SKU Number
Input Voltage
AJ 95-0420-01
115V
AJ 95-0420-02
240V
Dimensions: 13.25D x 19.13W x 5.63H in. (337 x 486 x 143mm) Height includes UV blocking cover.
AnalytikJena's products are guaranteed to be free of defects in materials, workmanship and manufacture for one (1) year from date of purchase, except as follows:
- Consumable and disposable parts are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- UV tubes and filters are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- AnalytikJena Transilluminators are guaranteed to be free from defects in manufacture and materials for two (2) years from date of purchase.
If equipment failure or malfunction occurs during the warranty period, AnalytikJena shall examine the inoperative equipment and have the option of repairing or replacing any part(s) which, in the judgment of AnalytikJena , were originally defective or became so under conditions of normal usage and service.
No warranty shall apply to this instrument, or part thereof, that has been subject to accident, negligence, alteration, abuse or misuse by the end-user. Moreover, AnalytikJena makes no warranties whatsoever with respect to parts not supplied by AnalytikJena or that have been installed, used and/or serviced other than in strict compliance with instructions appearing in this manual.
In no event shall AnalytikJena be responsible to the end-user for any incidental or consequential damages, whether foreseeable or not, including but not limited to property damage, inability to use equipment, lost business, lost profits, or inconvenience arising out of or connected with the use of instruments produced by AnalytikJena . Nor is AnalytikJena liable or responsible for any personal injuries occurring as a result of the use, installation and/or servicing of equipment.
This warranty does not supersede any statuatory rights that may be available in certain countries.
