AnalytikJena UVX Digital UV Radiometer

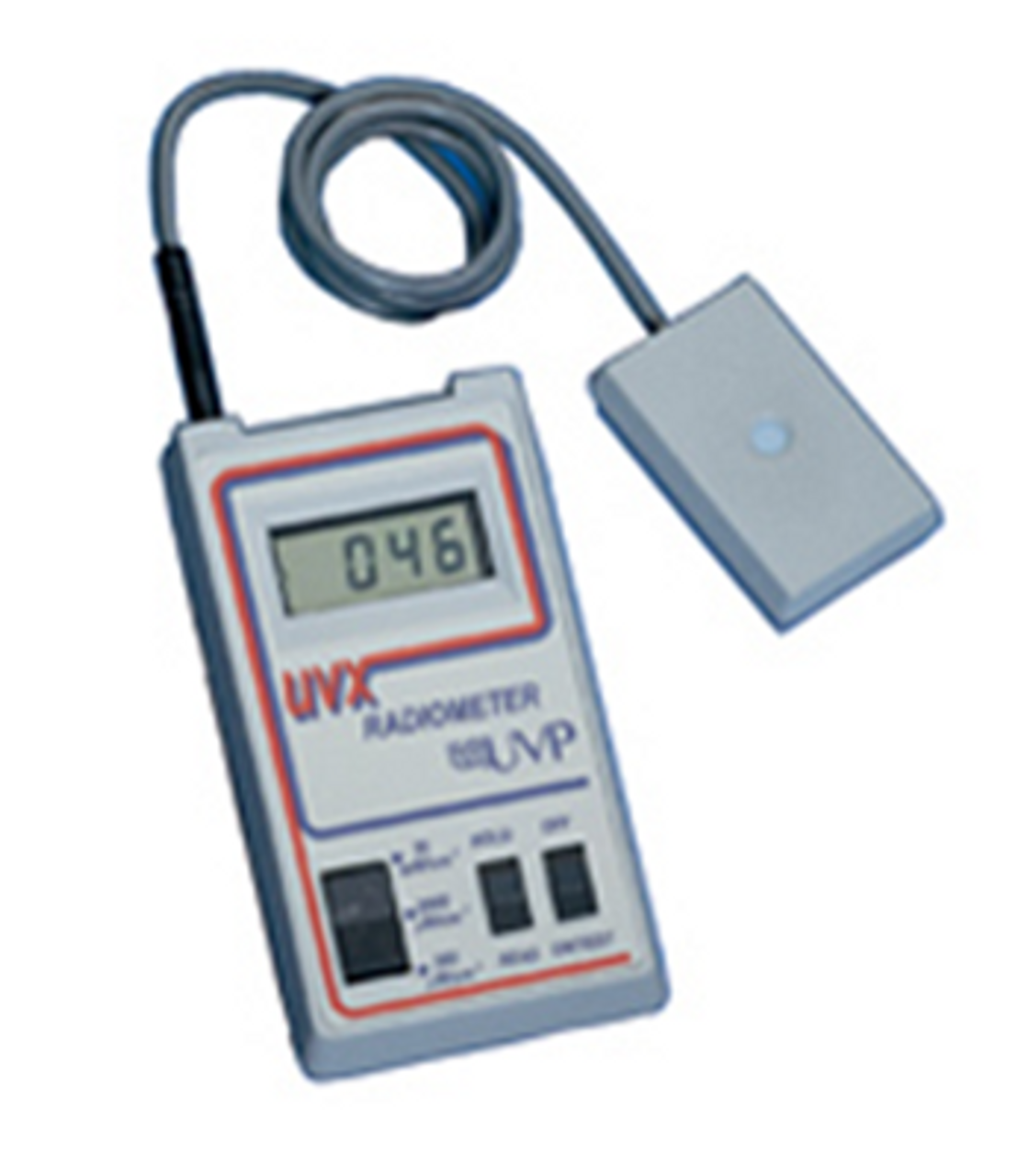

  • UVX Radiometer and Sensor

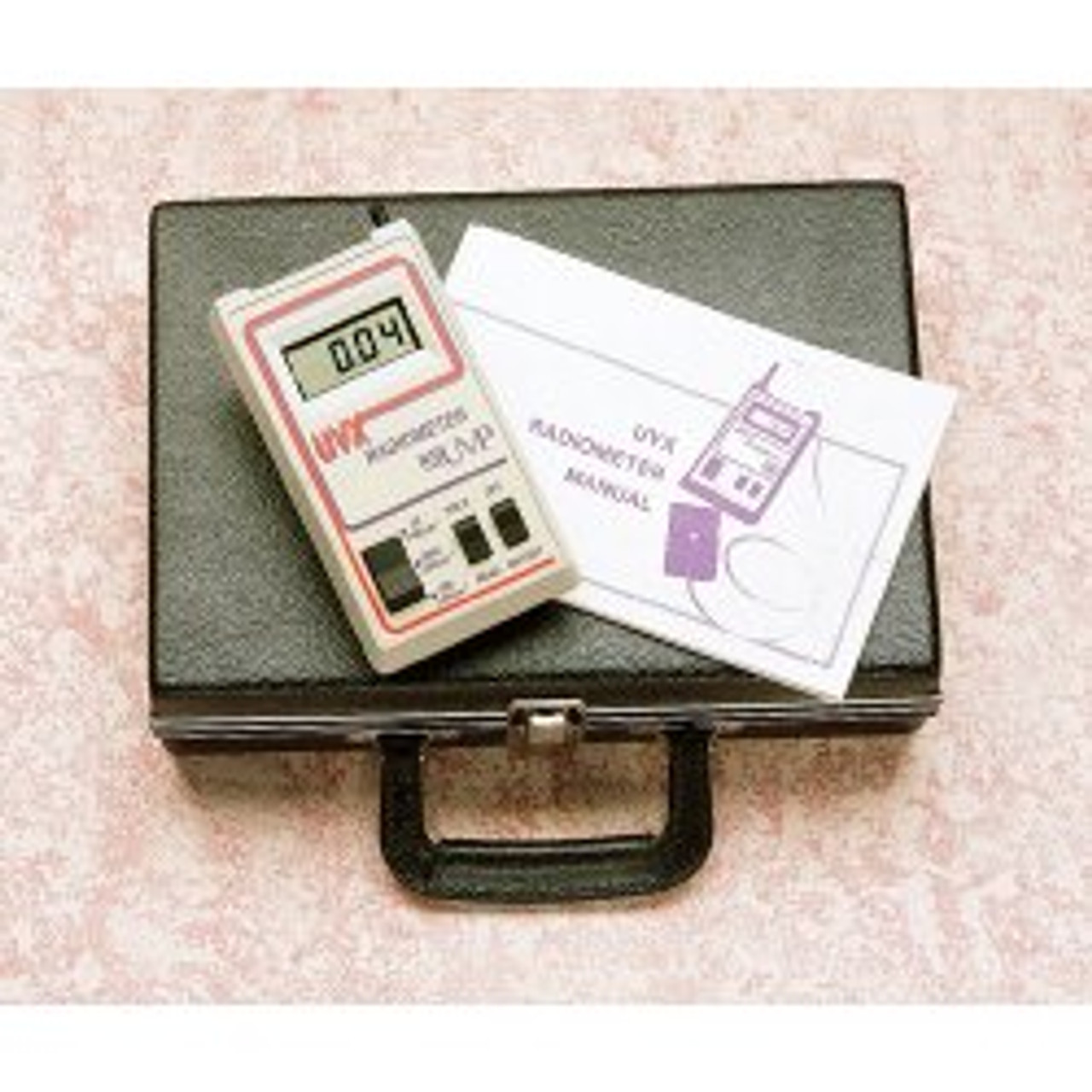

  • UVX Meter-Case-Cert
Price:
$877.97
SKU:
AJ 97-0015-02
Brand:
Weight:
5.00 LBS
Shipping:
Calculated at checkout





Product Description

The UVX Radiometer is a handheld UV Meter used to ensure the maximum operating efficiency of UV light sources with the measurement of a UV illumination system or lamp's UV output - the most effective way to monitor the useful life of any UV light source. The durable plastic housings of the UV meters are impact resistant and will withstand heavy, sustained use. The UVX Radiometer requires one of the three interchangeable sensors (which can also be ordered separately) which are calibrated for measurement of 254nm, 365nm and 310nm UV wavelengths.

Features

  • Chart recorder port for continuous monitoring,
  • 3.5 digit LCD Display,
  • Sensors available for measurement of UV spectrum range of 250nm to 380nm,
  • Sensor Cable Length of 3 feet,
  • Storage and carrying case, with room for one

     sensor,
  • Typical battery time of 120 hours (9 volt battery not included).

Specifications



  • Three available sensor heads with accuracy of +/-5%  (NIST standard):

    • UVC - 250-290nm shortwave (254nm calibration center)
    • UVB - 280-340nm midrange (310nm calibration center)
    • UVA - 335-380nm longwave (365nm calibration center)
  • A 10:1 attenuator extends the reading range up to 200mW/cm2,

  • Range switch provides selection from three intensity ranges:

    • 0 to 20 mW/cm2
    • 0 to 2000 µW/cm2
    • 0 to 200 µW/cm2
  • Readout with accuracy of +/-2%,

  • Sensitivity down to 0.1 µW/cm2,

  • Linearity of ± 1% over the total range, ± one digit

  • Conversion Rate of 2.8 readings/second,

  • Traceability of calibration:  Individually serialized and certified to meet published specifications, traceable to NIST. (Recalibration of sensor heads and meter recommended every 6 months. (Call Labgear USA at 650-254-8333 for RMA and quotation)

  • Dimensions: 6.2L x 2H x 3.6W in. (157 x 51 x 91 mm)

  • Weight: 9.4 oz (0.3 kg)

Optional Accessories

Available P/Ns

Description

Click Here to Order Additional Sensor:

P/N 97-0016-01

UVX-25 Sensor

Calibration Point: 254nm

Bandpass: 250-290nm

Click Here to Order Additional Sensor:

P/N 97-0016-04

UVX-31 Sensor

Calibration Point: 310nm

Bandpass: 280-340nm

Click Here to Order Additional Sensor:

P/N 97-0016-02

UVX-36 Sensor

Calibration Point: 365nm

Bandpass: 335-380nm

98-0035-01

10:1 Attenuator



Literature

adobe-pdf-icon-transparent-halfinch.pngSee Operating Manual

---

Warranty Information

AnalytikJena's products are guaranteed to be free of defects in materials, workmanship and manufacture for one (1) year from date of purchase, except as follows:
- Consumable and disposable parts are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- UV tubes and filters are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- AnalytikJena Transilluminators are guaranteed to be free from defects in manufacture and materials for two (2) years from date of purchase.

If equipment failure or malfunction occurs during the warranty period, AnalytikJena shall examine the inoperative equipment and have the option of repairing or replacing any part(s) which, in the judgment of AnalytikJena , were originally defective or became so under conditions of normal usage and service.

No warranty shall apply to this instrument, or part thereof, that has been subject to accident, negligence, alteration, abuse or misuse by the end-user. Moreover, AnalytikJena makes no warranties whatsoever with respect to parts not supplied by AnalytikJena or that have been installed, used and/or serviced other than in strict compliance with instructions appearing in this manual.

In no event shall AnalytikJena be responsible to the end-user for any incidental or consequential damages, whether foreseeable or not, including but not limited to property damage, inability to use equipment, lost business, lost profits, or inconvenience arising out of or connected with the use of instruments produced by AnalytikJena . Nor is AnalytikJena liable or responsible for any personal injuries occurring as a result of the use, installation and/or servicing of equipment.

This warranty does not supersede any statutory rights that may be available in certain countries.
