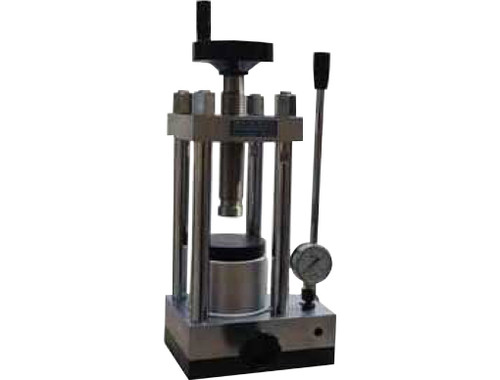

The Model FT-IR510-8 a manual 15 ton hydraulic press specifically designed for laboratory preparation of solid samples, and is ideal for pressing potassium bromide (KBr) discs used in FTIR analysis.  Operation is very simple; close the oil valve, pump the handle to move oil from the reservoir through a one-way valve into the piston. When adequate pressure/energy is accumulated, then release the piston by opening the oil-drain valve.

Applications

• Pellet sample,
• XRF analysis,
• KBr disc,
• Preparation of thin polymer films.

Specifications

• Pressure Range 0-15T（0-25MPa）

• Piston Diameter: 87mm (3.4")

• Maximum Piston Stroke: 20mm (0.8")

• Table Diameter: 98mm (3.86")

• Workspace: 90×90×150mm

• Note:  Workspace can be designed and manufactured upon customers’ requirements.

• Pressure Stability ≤1MPa/5min

• Weight 40kg (90 lbs)

• Exterior Size 280×210×500mm

• Free Shipping within the Lower 48 United States. Shipped globally, so call for freight quote if delivery is outside of this area.

• Structure

Place No.  - Name

• 1 - handwheel
• 2 - screw
• 3 - fixing nut
• 4 - column
• 5 - worktable
• 6 - piston
• 7 - oil-draining valve
• 8 - oil pool
• 9 - mold
• 10 - pressure gauge
• 11 - manual handle
• 12 - piston pump
• 13 - oil-injecting screw
• 14 - position-setting screw
• 15 - oil-suction valve
• 16 - delivery valve

Documentation

• Operating Manual (Click Here to Download)

---
