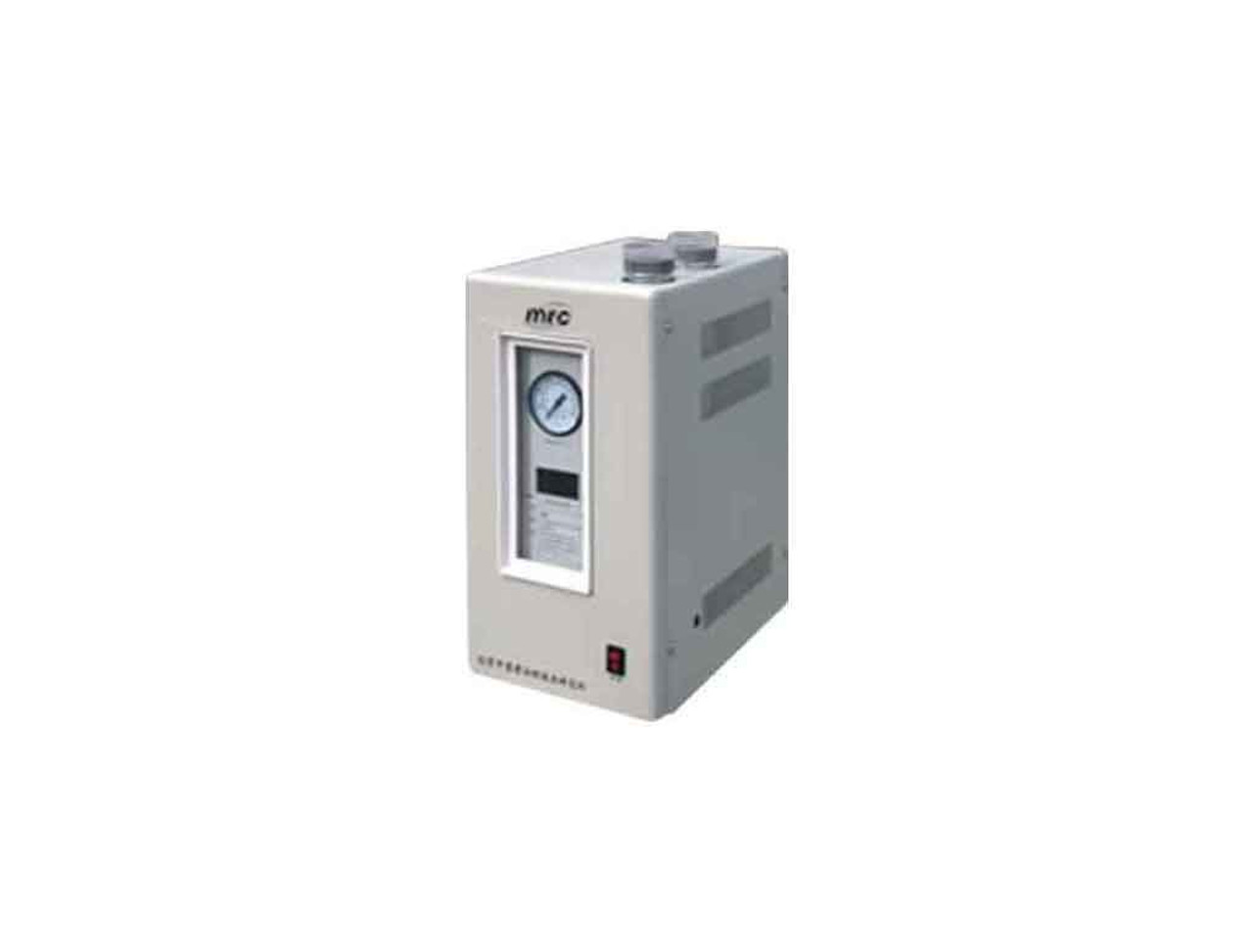

The GG-N-300 and GG-N-500 are both Nitrogen Generators with a nitrogen purity of less than 3 parts per million (PPM) oxygen.  These nitrogen generators employ the latest catalytic separation technology to provide nitrogen gas to a wide range of gas chromatographs.  Both models utilize simple clear air as feed gas and employ a PCAN carrier and noble metal catalysts in an electric catalytic process for air separation to produce high purity nitrogen.

Features

• Full program control for ease of use, with settings for constant voltage, constant current and nitrogen flow.

• Constant gas production pressure for consistent results,

• Low humidity nitrogen production with permeable film to effectively remove humidity and improve purity,

• Stable pure gas flow for worry free operation.

Specifications

• Purity:  <3ppm Oxygen

• Dew point: -56°C

• Nitrogen Flow:

• 0 - 300ml/min

• 0 - 500ml/min

• Working Pressure: 0.4MPa

• Consumed Power:

• GG-N-300 - 60W

• GG-N-500 - 100W

• Requires analytical purity potassium hydroxide (Not included for shipping safety),

• Humidity: <85%

• Environmental Temperature: : 1-40°C

• Dimension: 370×180×330mm

• Net Weight: 10Kg

• Input Power:  110V/220V, 50/60Hz

• Included Spare Parts:

• Suction ball (With ø4 stainless tube)

• Seal ring for filter (ø14×2.4)

• Seal ring for filter (ø26×2.4)

• Seal ring for filter (ø32×2.4)

• Seal ring for gas pipeline (ø6×5)

• Screw nut (M8×1)

• Copper gas tube (ø3) 2m

Operators Manual

---
