Scilogex MS-H340-S4 is a 4-Channel Digital Magnetic Hotplate Stirrer with 4 independent LCD displays, heating elements and motor drives providing setting, monitor and control for each position.

Applications

• Chemical synthesis,
• Physical and chemical analysis,
• Biopharmaceutical production and test.

Features

• Independent heating and stirring control,
• High magnetic adhesion,
• LCD display shows actual temperatures and speed,
• PID controller ensures a precise and steady heating process,
• Maximum temperature up to 340°C,
• Brushless DC motor enables long life, powerful stirring and precision speed control,
• External temperature sensor using optional PT1000 sensor with accuracy at 0.2°C  (sold separately),
• Overheating protection temperature at 420°C
• Stainless steel work plate with ceramic coating provides excellent chemical resistance.
• cTUVus approved,
• CE Marked,
• 2 year warranty.

Specifications

• Stirring:
• Volume H20: 10 Liters x 4 (40L)
• Speed: 200 - 1500 RPM
• Heating:
• Range: 25 - 340°C
• Power:  500W x 4 (2000W)
• Accuracy: +/- 0.2°C (With PT1000 Option)
• Dimensions:
• Plate: 125mm (5 in.)
• Overall (WxDxH): 69x270x128 mm (27.5x10.6x5 in.)
• Weight: 21 lbs
• Environmental Temp.: 5 - 40°C
• Input Voltage: 100-120V, 60Hz

Optional Accessories

PT1000 Sensor (Click Here to Order)

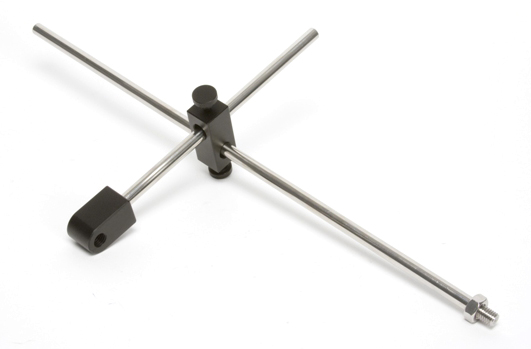

Sensor Support Rod & Clamp

• PTFE Coated Magnetic Stirring Bars. (Click here to order)

• PTFE Coated Stirring Bar Remover. (Click here to order
