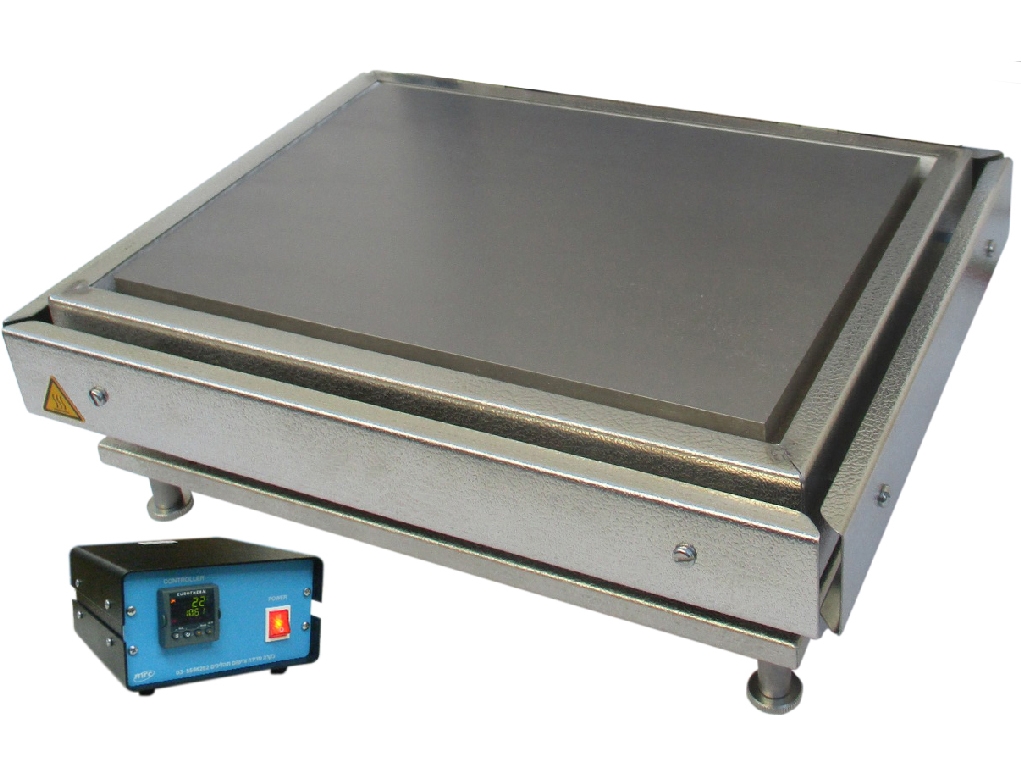

MRC Labs HOP-2820-TITAN High Temperature Hotplate of Titanium can be used for continuous operation while set at very high temperatures.

Applications

• High temperature heating in laboratories,
• Industrial thermal processes,
• Materials processing and test,
• Petroleum processing and test,
• Food processing and test,
• Chemical processing and test.

Features

• High temperature heating up to 600°C reached within 20 minutes,
• Includes temperature controller or programmer,
• Heat is concentrated in 230x160mm marked area,
• Device can be placed in heat sensitive surfaces as it has special kind of insulation,
• Casing temperature is minimized by metal sheets all around,
• Short times of warming and slight loss of heat ensured by insulated snap-lid,
• Stainless steel casing for whole unit,
• Two plugged cables connect the temperature regulator,
• Available either with programmer or temperature controller.

Specifications

• Optional design covers with more available height on request, (Call LabGear USA for information at 650-254-8333.)
• Titanium plate size: 280mm x 200mm,
• Constant heating area: 230mm x 160mm,
• Maximum temperature: 600°C,
• Input Voltage: 230 Volt, 50/60 Hz, NEMA 6-20P plug
• Power:  2000 Watt,
• Spread of temperature: ±2K,
• Cable length(standard): 1.5m,
• Overall Dimensions: 350mm x 300mm x 110mm/145mm height

Control Box

• Digital Temperature control or programmable up to 5 programs of 8 segments,
• Based on EUROTHERM Programmer models:
• 3216CC (Temp. Control),
• 3216CP (Programmable Controls),
• PID Controller with SELF TUNE Function,
• Thermocouple (Standard Pin TC) or RTD Temperature sensor input,
• Temperature sensor not included.

Literature

•  Operator's Manual
